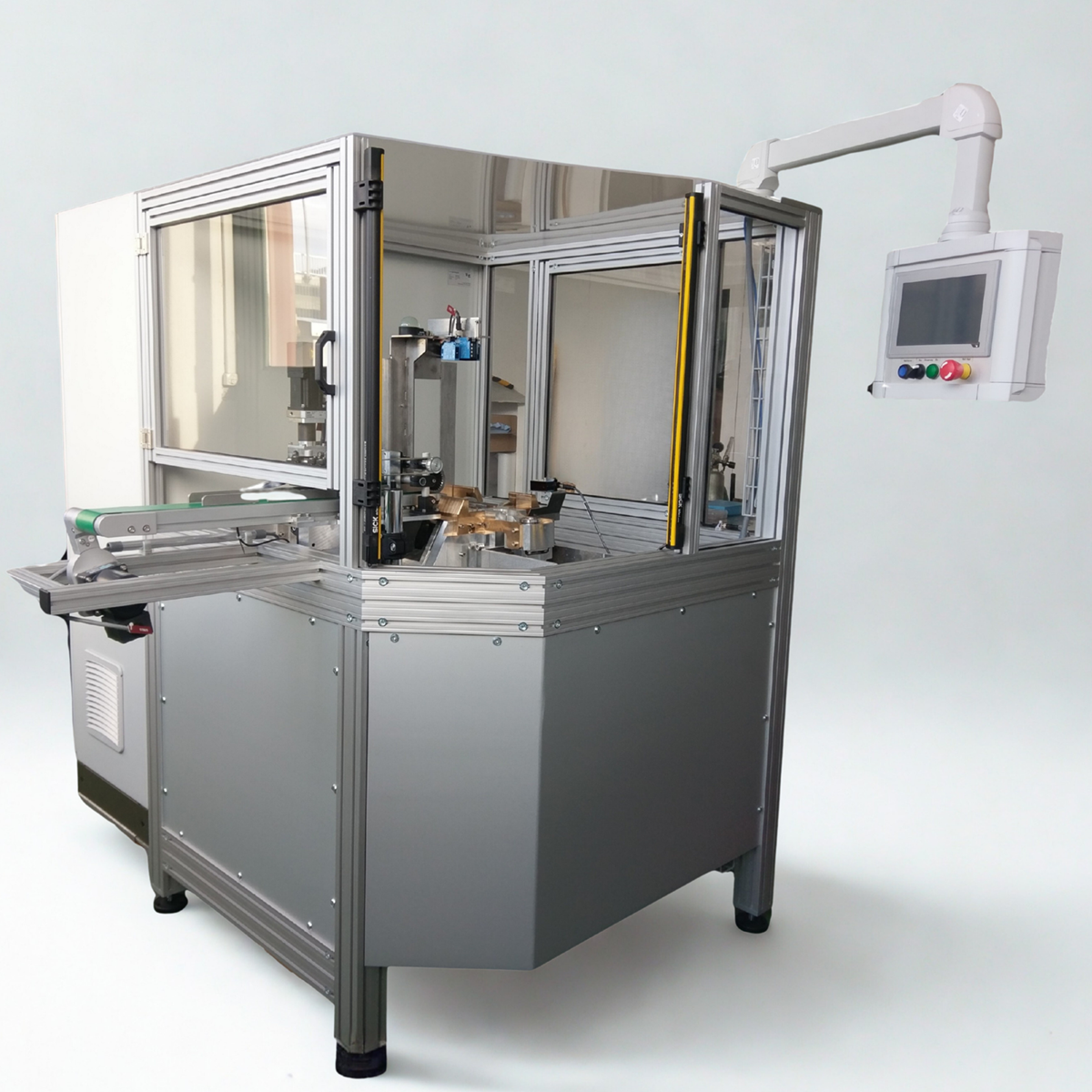

Custom roll bending machine for flexible and efficient sleeve manufacturing in a production environment.
- Engineering Services
- Manufacturing Services
- Mechanical & Plant Engineering
- Development & Design
- Projectmanagement
- Procurement & Manufacturing
- CE Compliance
The Project
Initial Situation & Use

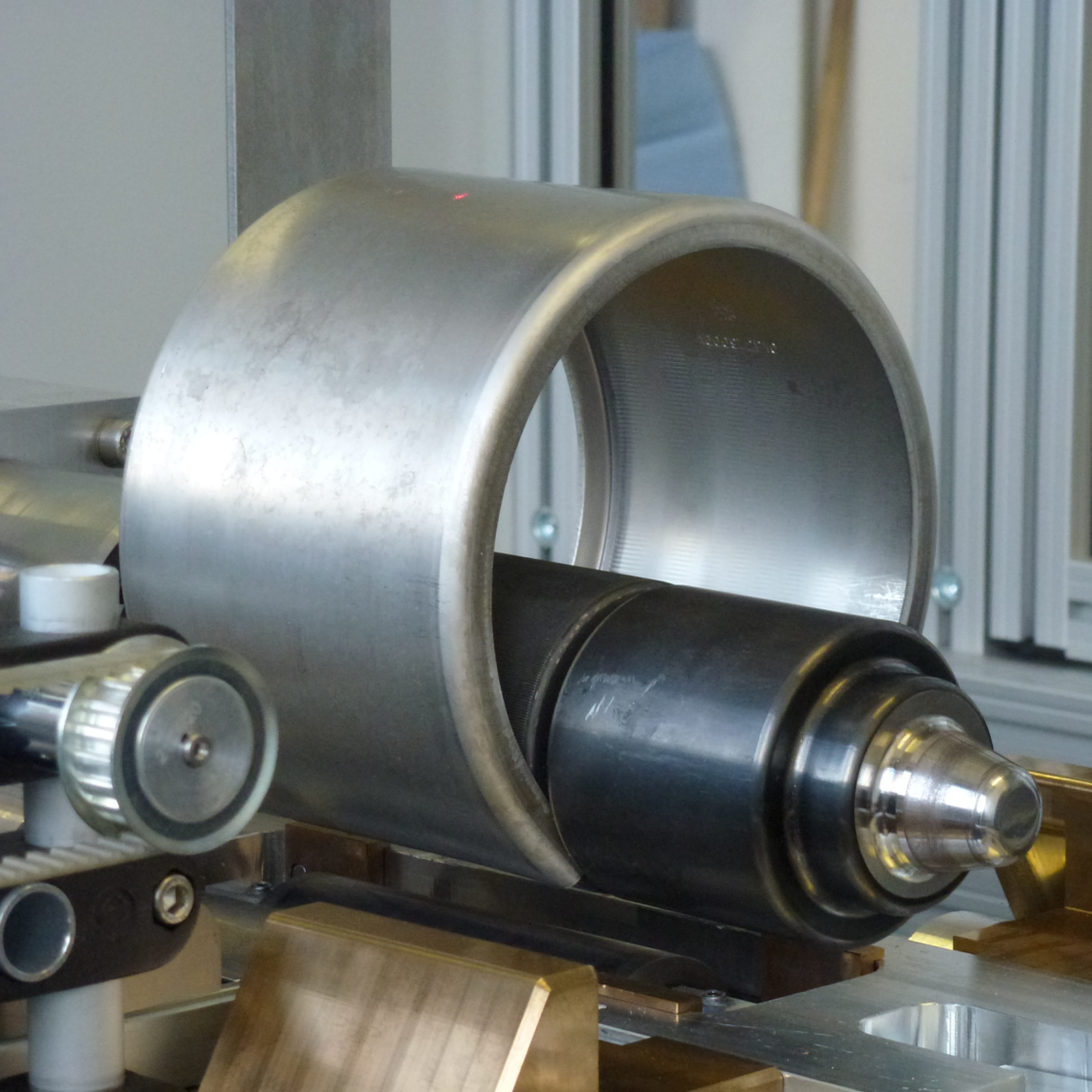

The system is used for forming sheet metal profiles into sleeves of varying diameters and widths.
The requirements included high product variety, short changeover times and reproducible bending processes in serial production.
Our Solution

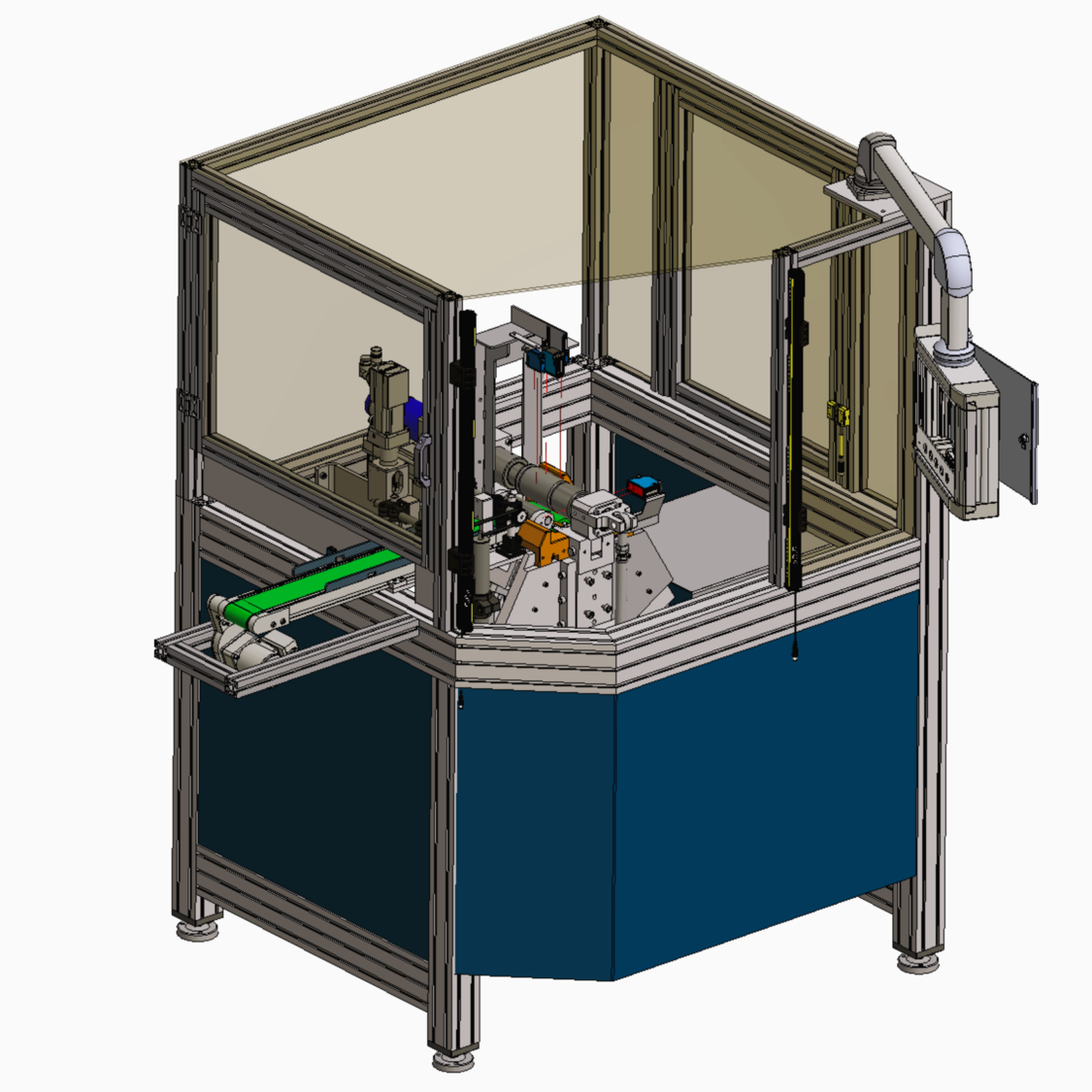

G+P Engineering AG handled the mechanical design, engineering and implementation of the roll bending machine, including procurement and project coordination.
The electrical and control system integration was performed in close collaboration with a technology partner.
Technical Specifications
- Semi-automatic roll bending machine
- Material feed from coil, optionally via magazine

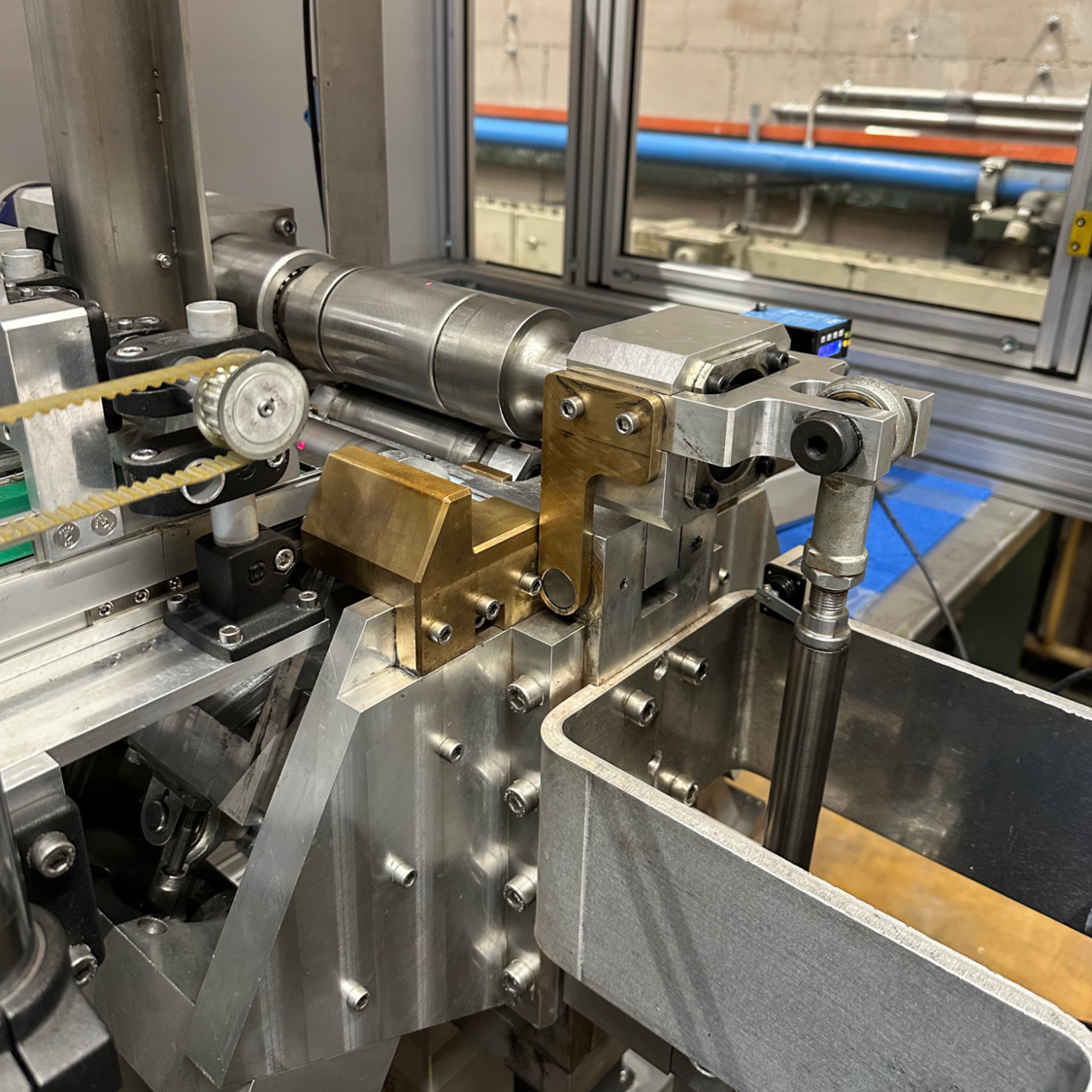

- Format change via forming and bending rollers
- 4 bending widths, approx. 30 variants
- Machine dimensions: approx. 1,750 × 1,750 × 2,000 mm
Customer Benefits
- Flexible sleeve production with high variant diversity
- Short changeover times
- Reduced cycle times through optimized process workf
