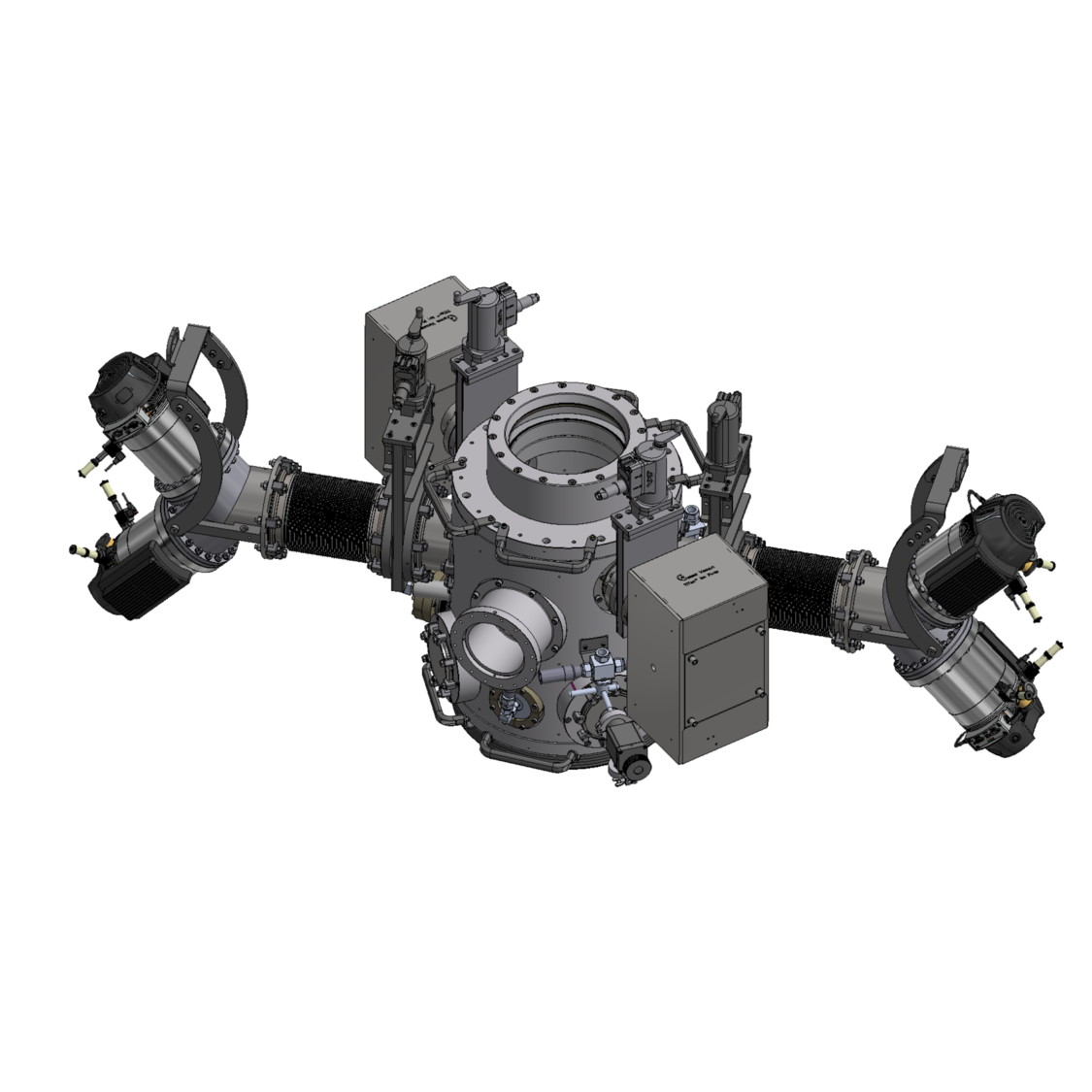

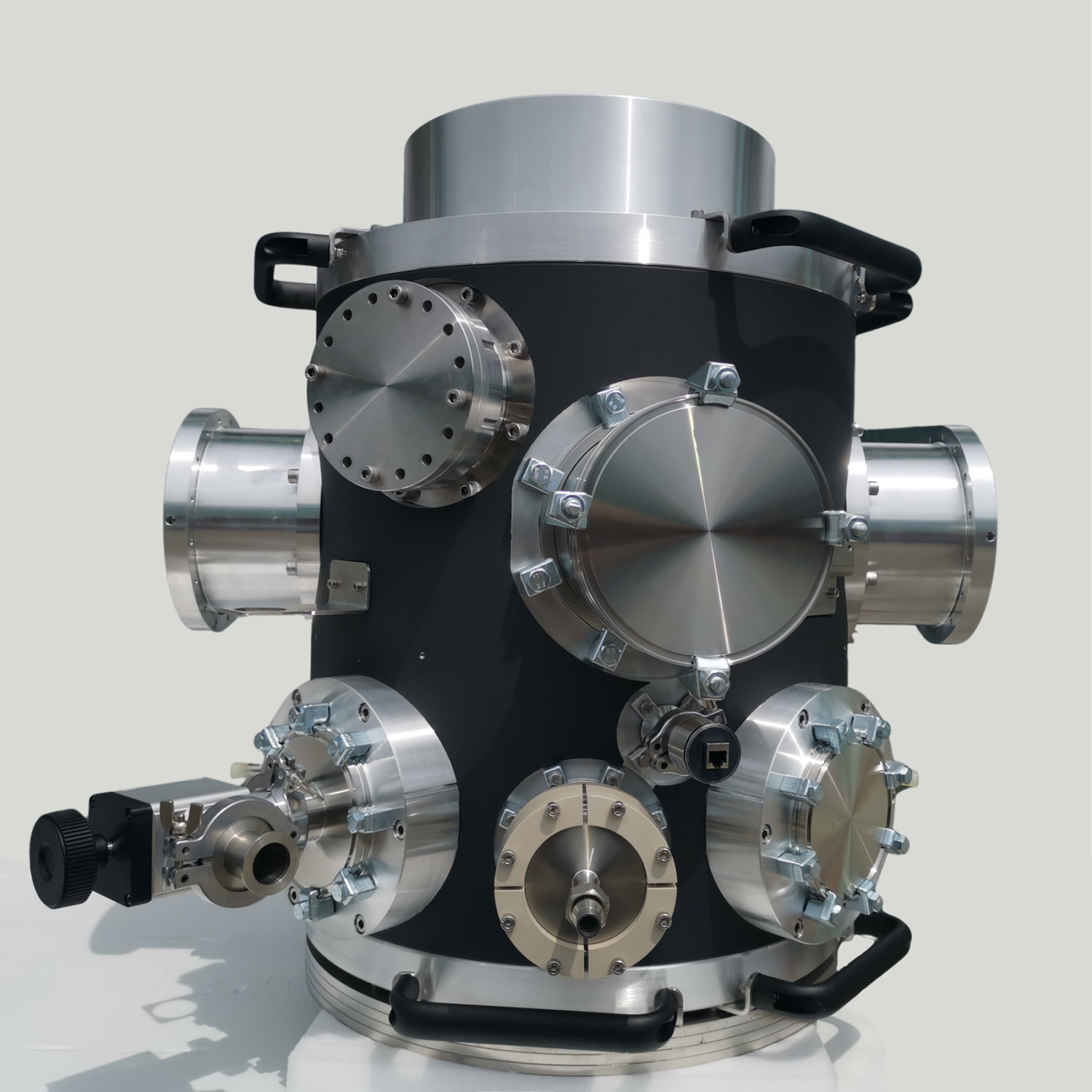

Custom vacuum chamber for aerospace development and testing applications.
- Engineering Services
- Manufacturing Services
- Aerospace
- Development & Design
- Calculation & Simulation
- Technical Documentation
- Procurement & Manufacturing
The Project
Initial Situation & Use
For space applications, a vacuum chamber was required to meet stringent requirements for leak tightness, stability and reproducibility
The goal was a solution suitable for development and testing tasks, providing a solid basis for design and implementation.
Our Solution
G+P Engineering AG was responsible for the concept study and engineering, as well as the design and implementation of the vacuum chamber.
The scope of work included the design and technical documentation, as well as the manufacturing and commissioning of the system.
Technical Specifications
- Cylindrical vacuum chamber, Ø 500 mm × 920 mm
- Ultimate pressure: ≤ 1 × 10⁻⁷ mbar
- Ultimate pressure stability: ≤ 5 × 10⁻⁷ mbar over 24 h
- Evacuation time: <4 hours
Customer Benefits
- Reliable vacuum conditions for space applications
- High level of planning certainty based on solid engineering
- Complete and traceable technical documentation
- Smooth execution from concept study to commissioning
