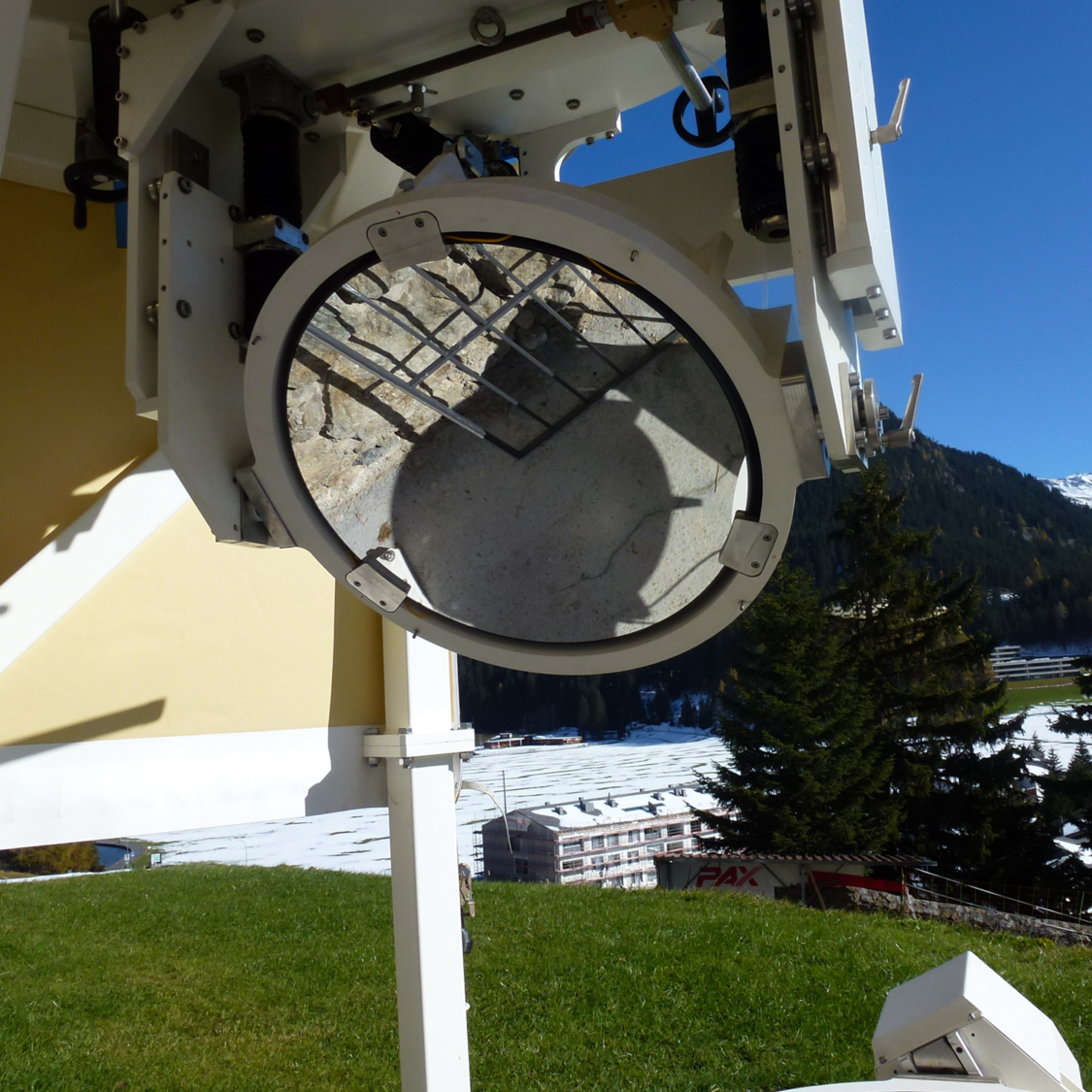

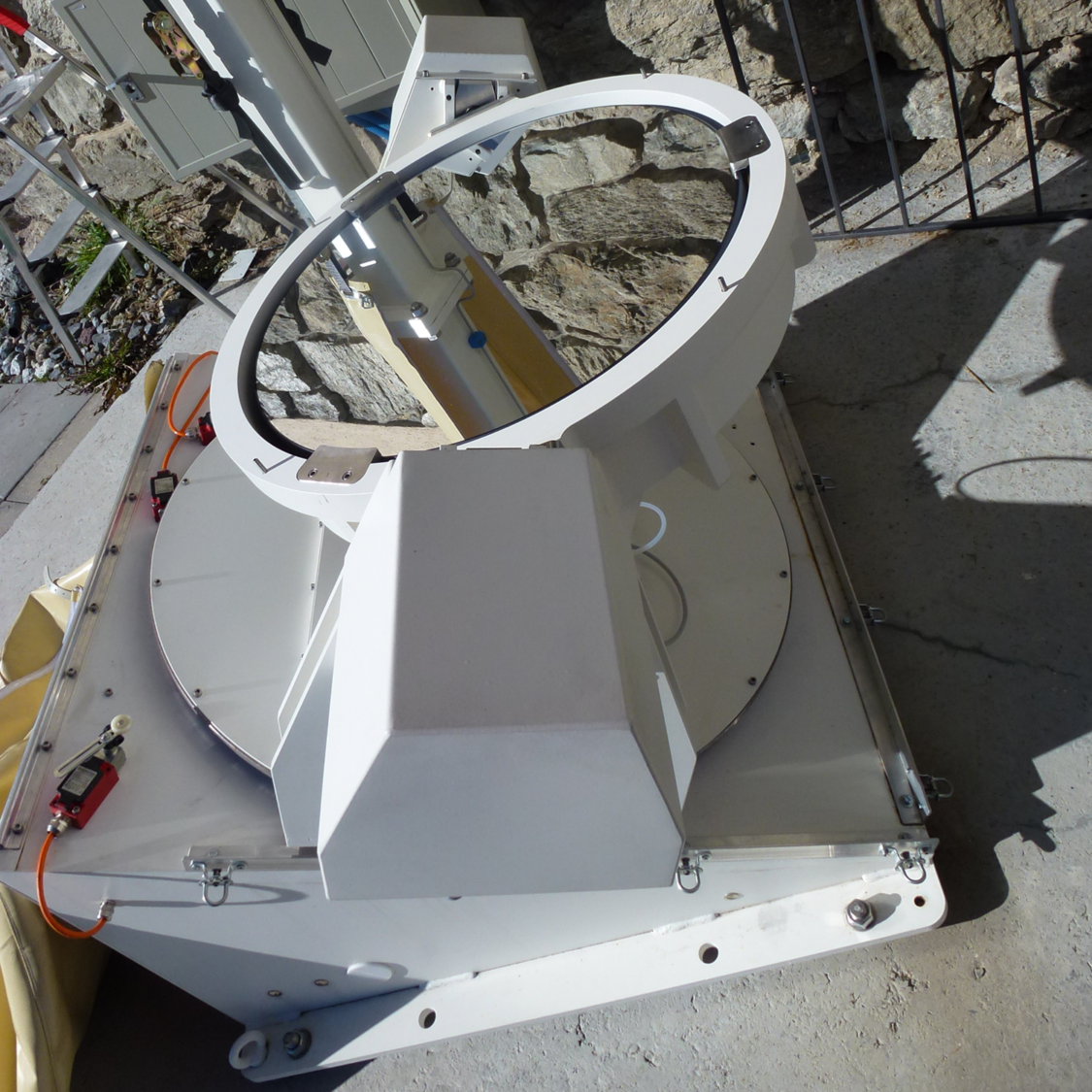

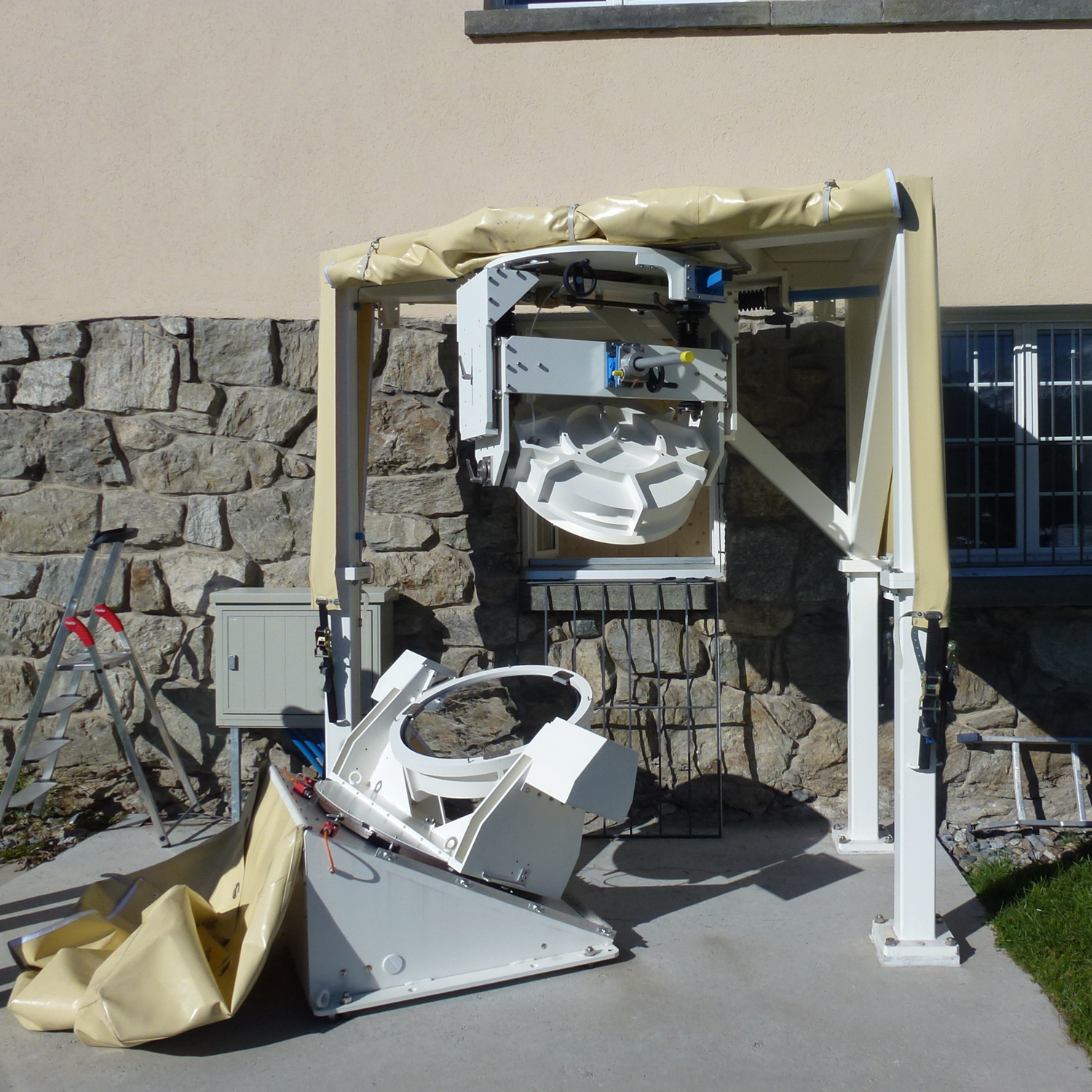

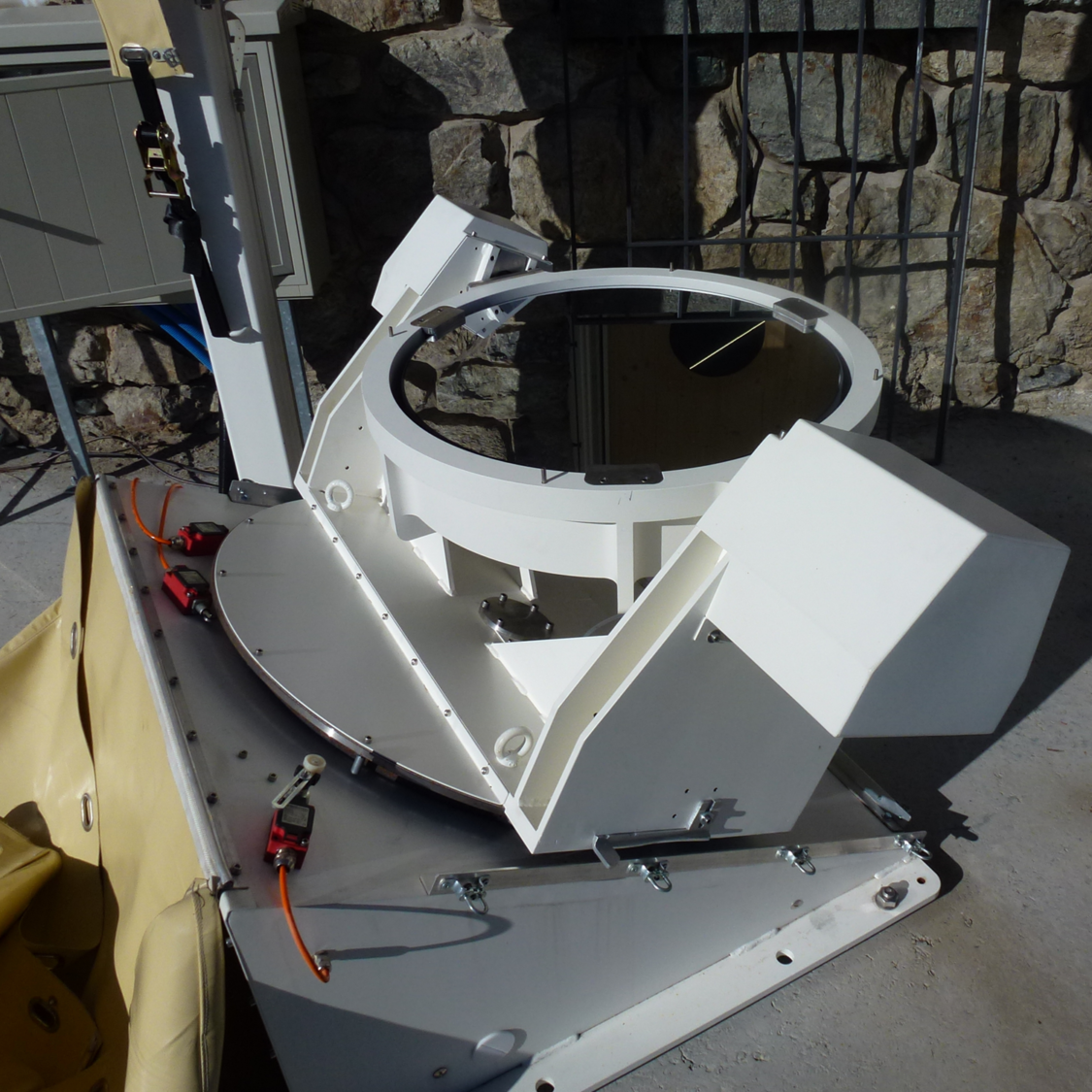

Custom mirror mount for the precise deflection of concentrated sunlight for scientific applications.
- Engineering Services
- Research & Development
- Development & Design
- Procurement & Manufacturing
The Project
Initial Situation & Use
A research institute needed a mirror mount that would direct sunlight into the building.
The system is designed to continuously track the sun’s position for measurement and research purposes.
Our Solution
G+P Engineering AG was responsible for the engineering, design, manufacturing and pre-assembly of the mirror mount.
The solution was customized to meet the geometric and mechanical requirements of the system.
Technical Specifications
- Redirecting concentrated sunlight into the building
- Tracking the sun’s position via the lower mirror
- Mirror diameter: Ø 650 mm
- Total weight: ca. 2,0 t
Customer Benefits
- Precise and stable alignment of the mirror system
- Reliable tracking of the sun’s position
- Robust mechanical design for continuous operation
- Customized solution for scientific applications
